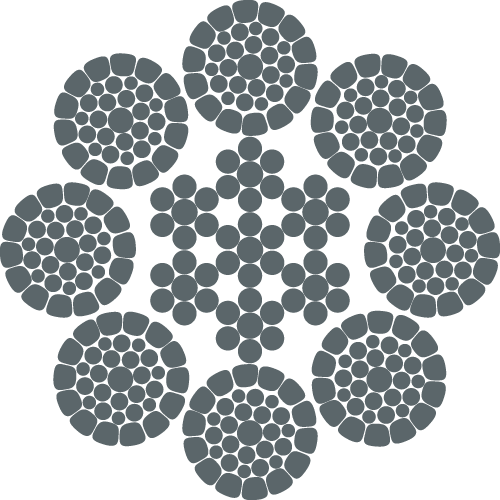

● core: steel core
● core type: 7×7 or 7×19S
● compacted strand: warrington-Seale
● main hoist rope for gantry crane, STS crane.
● luffing rope and pendant rope for tower crane and crawler crane
● drive wire rope for telescopic boom of mobile crane
The 8-strand construction, combined with a high number of wires and the WS lay pattern, renders the rope highly flexible; this allows it to accommodate smaller pulley-to-rope diameter ratios (D/d) and ensures a longer fatigue life in applications involving frequent bending over pulleys.
The combination of compacted strands (K) and an Independent Wire Rope Core (IWRC) results in a high metallic cross-sectional area, delivering a higher breaking strength than standard wire ropes of the same diameter.
The outer wires form a smooth surface that is not only wear-resistant but also protects the pulleys and drums. Meanwhile, the IWRC core ensures the rope maintains its shape and resists crushing or deformation during multi-layer winding on the drum.
| Nominal diameter (mm) |
Approx. weight (kg/100m) |
Minimum breaking force (kN) | |||
| 1770 | 1960 | 2160 | 2160 HP | ||
| 8 | 31.0 | 47.0 | 52.1 | 57.4 | 62.7 |
| 9 | 39.3 | 59.5 | 65.9 | 72.6 | 79.3 |
| 10 | 48.5 | 73.5 | 81.3 | 89.6 | 97.9 |
| 11 | 58.7 | 88.9 | 98.4 | 108 | 119 |
| 12 | 69.8 | 106 | 117 | 129 | 141 |
| 13 | 82.0 | 124 | 137 | 151 | 166 |
| 14 | 95.1 | 144 | 159 | 176 | 192 |
| 16 | 124 | 188 | 208 | 229 | 251 |
| 18 | 157 | 238 | 264 | 290 | 317 |
| 20 | 194 | 294 | 325 | 359 | 392 |
| 22 | 235 | 356 | 394 | 434 | 474 |
| 24 | 279 | 423 | 469 | 516 | 564 |
| 26 | 328 | 497 | 550 | 606 | 662 |
| 28 | 380 | 576 | 638 | 703 | 768 |
| 30 | 437 | 661 | 732 | 807 | 881 |
| 32 | 497 | 752 | 833 | 918 | 1000 |
| 36 | 629 | 952 | 1050 | 1160 | 1270 |
| 40 | 776 | 1180 | 1300 | 1430 | 1570 |
